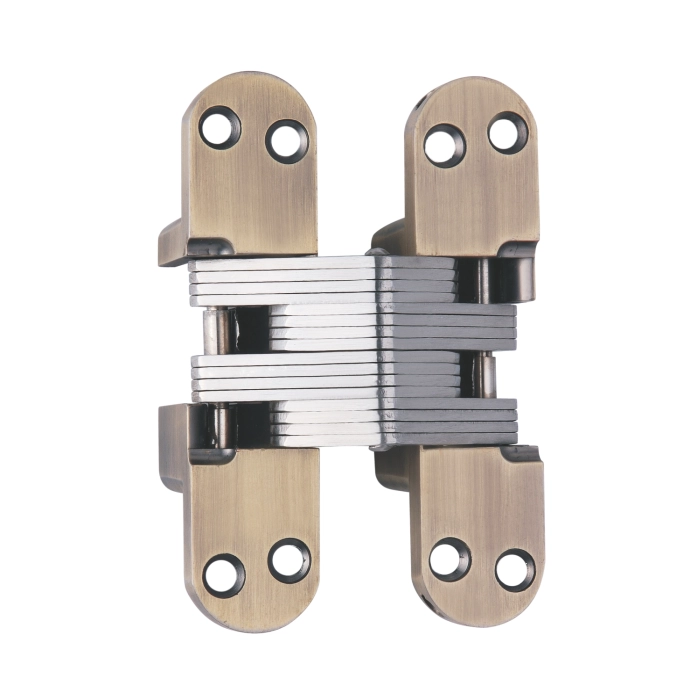

EuroArt Zinc Alloy Concealed Cabinet Hinge 95mm
Price range: 51.15 through 61.52
Features
- Zinc alloy body, hardened steel pins
- Totally invisible when the door is closed
- Non-handed
- Suitable for timber and metal doors

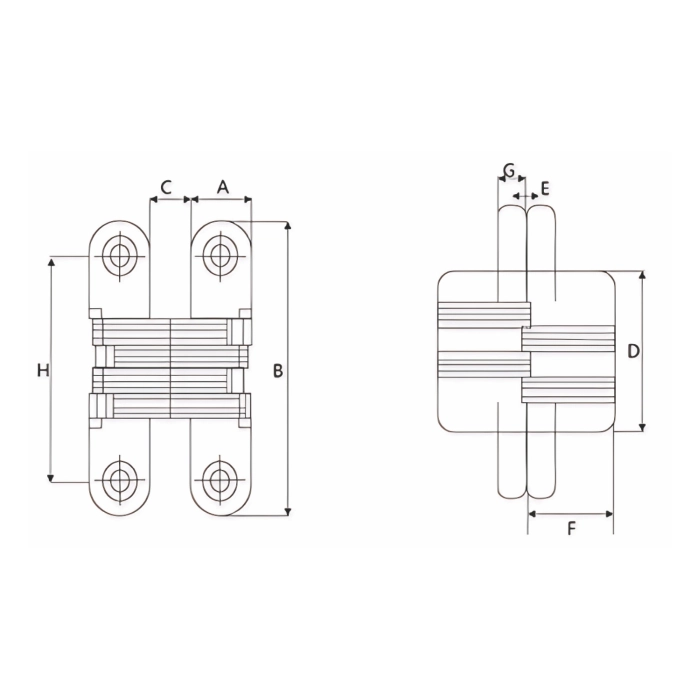

| Product Code |
Size tdickness |
Min. Door tdickness |
Weight Rated |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
| BH1345 | 13x45mm | 19mm | 10 Kg | 13 | 45 | 9 | 19 | 0.8 | 18 | 5 | 30.5 |
| BH1360 | 13x60mm | 19mm | 14 Kg | 13 | 60 | 9 | 30.5 | 0.8 | 18 | 6 | 47 |
| BH1670 | 16x70mm | 22mm | 25 Kg | 16 | 70 | 11 | 34 | 0.8 | 22.5 | 7.4 | 51 |
| BH1995 | 19x95mm | 28mm | 35 Kg | 19 | 95 | 13 | 52.5 | 1.2 | 27 | 9 | 73 |
| BH25117 | 25x117mm | 35mm | 45 Kg | 25 | 118 | 18 | 61.5 | 1 | 36.5 | 11.3 | 90.5 |
| BH28117 | 28x117mm | 41mm | 55 Kg | 28 | 118 | 22 | 65.3 | 1.4 | 41 | 9.5 | 93 |
| BH33139 | 33x139mm | 47mm | 70 Kg | 35 | 139.5 | 27.5 | 74.5 | 1.6 | 51 | 11.5 | 113.5 |
| Finish | Chrome Polished, Matt Antique Brass, Polished Brass, Satin Nickel |
|---|---|
| Material | |
| Size | |
| Unit |
